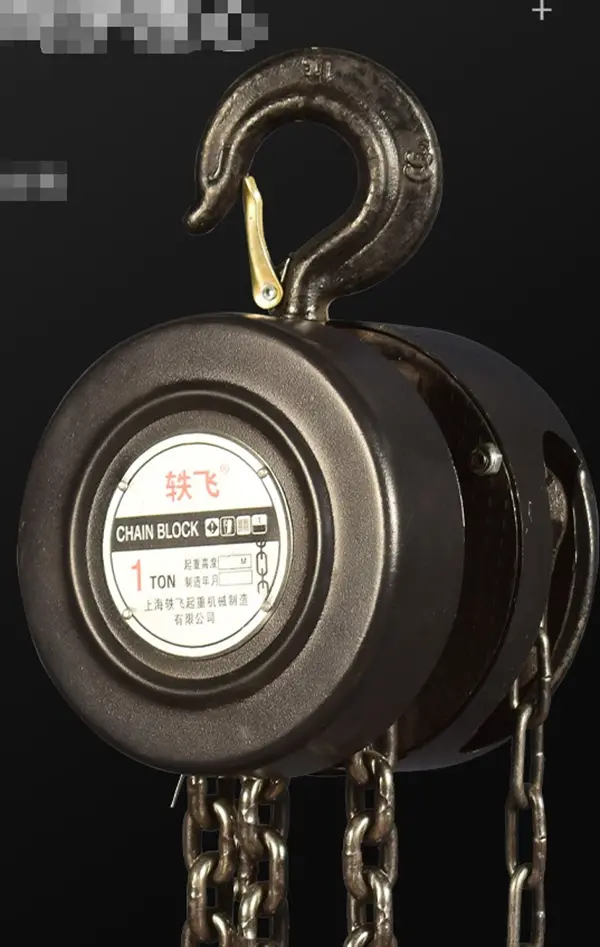

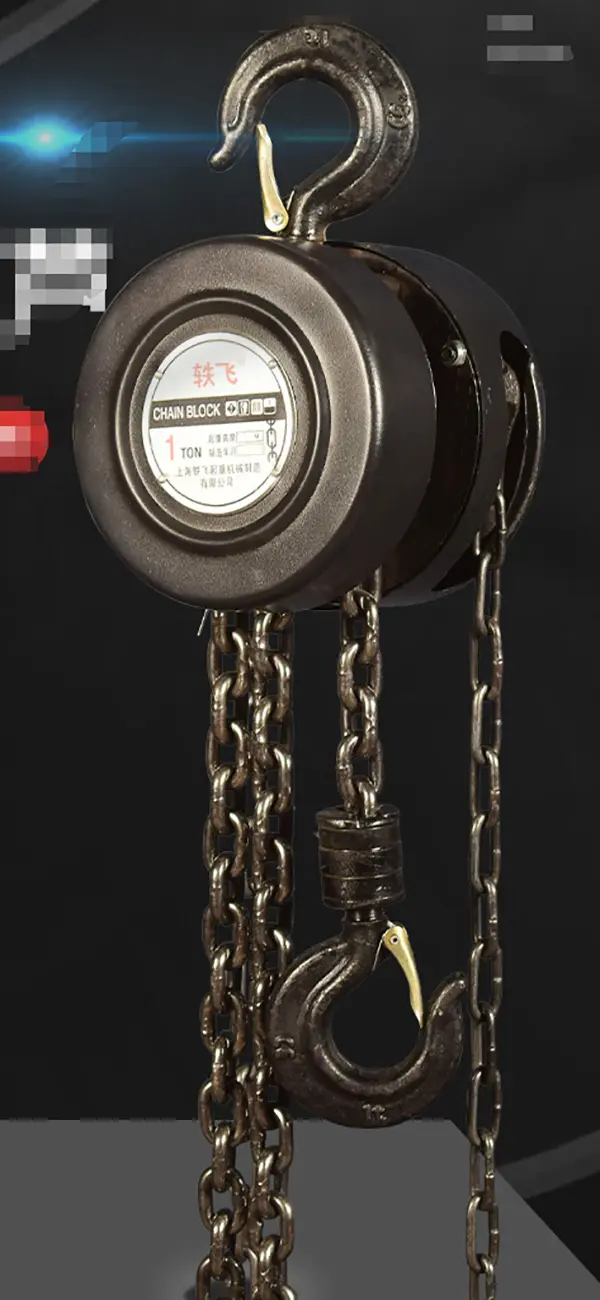

Round Chain Hoist

Drive the rotation of the hand chain wheel by manually operating the chain. Specifically, when pulling the manual chain, the hand chain wheel rotates, which in turn drives the friction plate ratchet, brake seat, as well as the plate gear, short shaft, and spline hole gear on the long shaft to rotate together. The lifting sprocket installed on the spline hole gear rotates accordingly, pulling the lifting chain to achieve the goal of smoothly lifting heavy objects.

The structure of a circular chain hoist includes components such as a bracelet strip, bracelet wheel, ratchet wheel, toothed short shaft, spline hole gear, toothed long shaft, etc. The core lies in the design of the gear set, where the small gear rotates twice to drive the large gear to rotate once. Through the pulling of the chain, the torque is amplified twice through the long and short shafts of the gear, making it easy to lift several tons of heavy objects.

The characteristics of a circular chain hoist include simple use, easy portability, and suitability for short distance lifting of small equipment items. Its lifting capacity is generally around 10 tons, and the lifting height is usually 6 meters. Hand pulled hoists also have the advantages of labor-saving and low cost, and are widely used in factories, mines, buildings, and other fields, especially in areas without power and with narrow spaces where operations have obvious advantages.

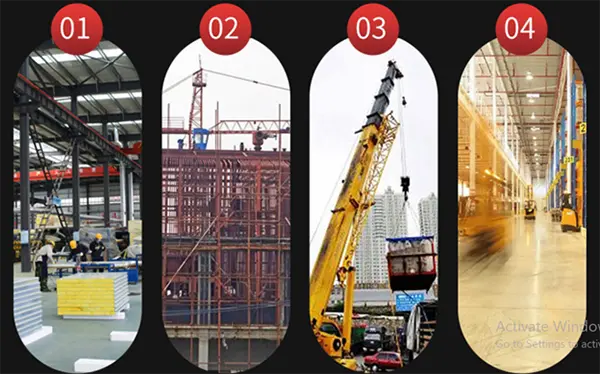

Circular chain hoists are mainly used for lifting and transporting heavy objects, suitable for various scenarios including construction sites, logistics and warehousing, agricultural production, and industrial production. The specific uses are as follows:

Construction site: In construction site construction, circular chain hoists are commonly used to transport various heavy objects and solve lifting and handling problems during construction.

Logistics warehousing: In logistics warehousing scenarios, chain hoists can help transport goods and improve work efficiency.

Agricultural production: Hand pulled haws are widely used in agricultural production, such as the hand pulled haws of tractors, which can drag large agricultural machinery and equipment.

 Industrial production: In the industrial production process, chain hoists are used to transport heavy objects such as machinery and equipment and are a good helper for workers.

Type: Manual hoist/Round chain hoist

Lifting height: 3-12m

Minimum distance between two hooks: 185mm

Increase speed: 3m

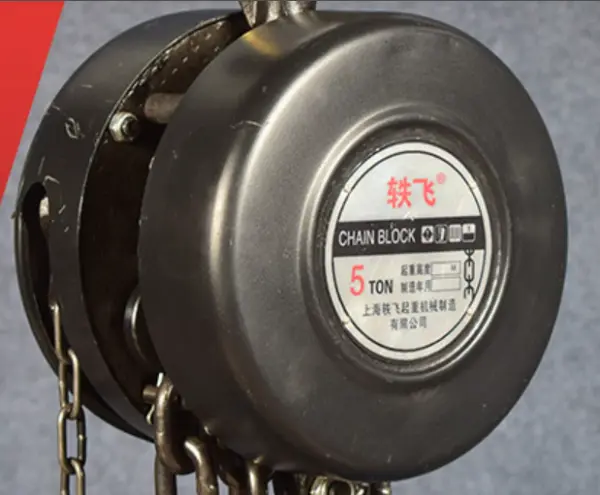

Thickened casing

Strong power

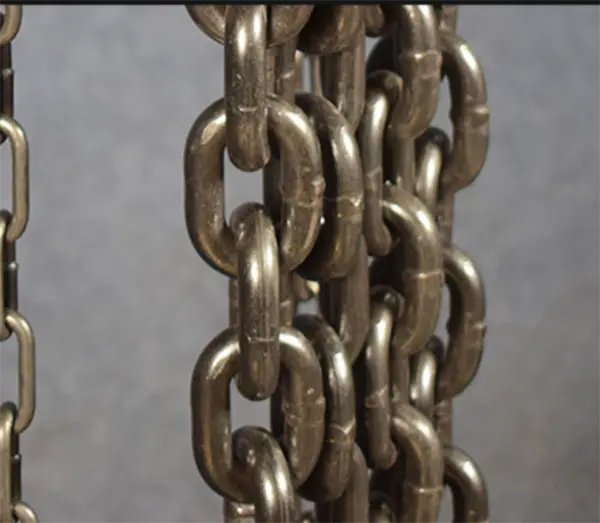

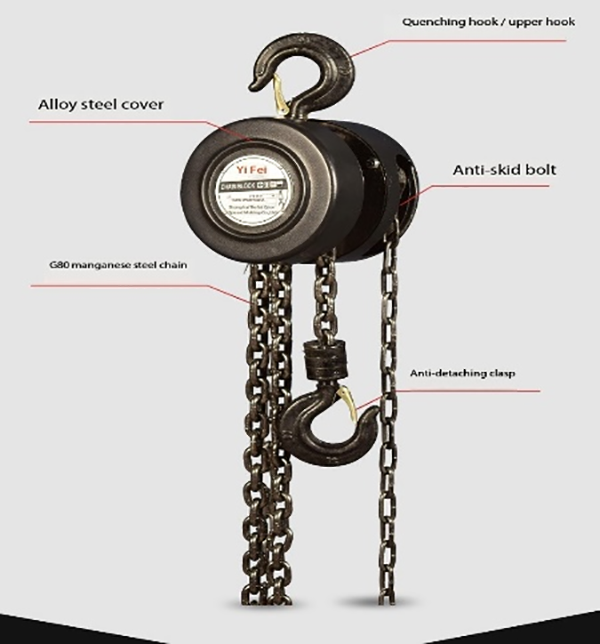

Manganese steel chain

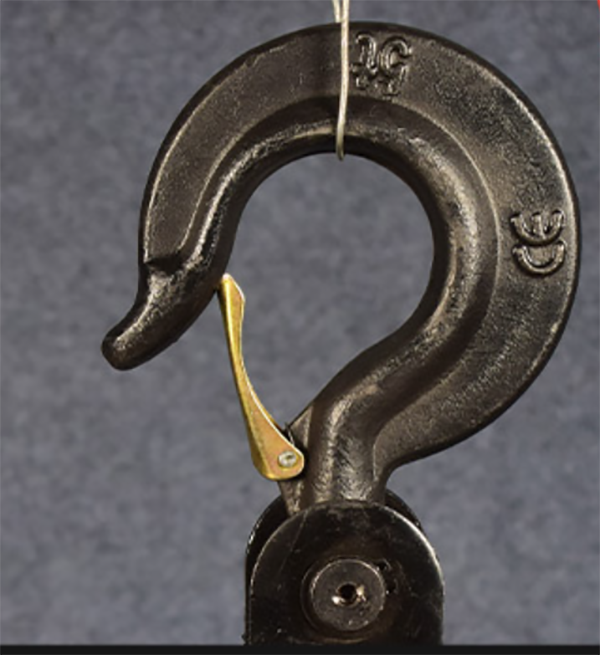

Anti fall, sturdy and caring core

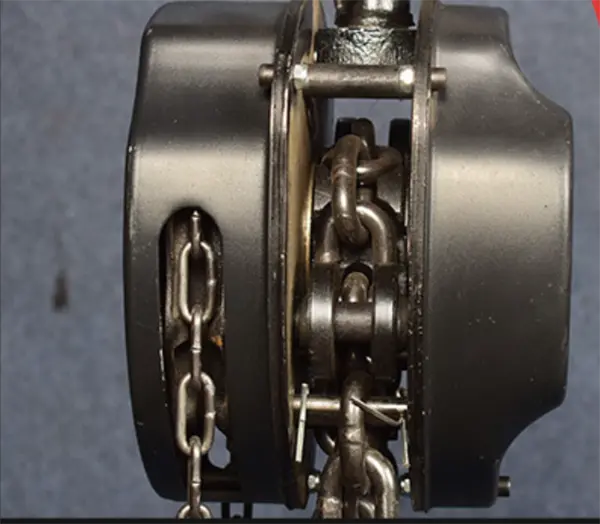

Thick stainless-steel casing with fast heat dissipation, high quality, sturdy and easy to use

Product material: Forged alloy steel

Product specifications: 1T-100T

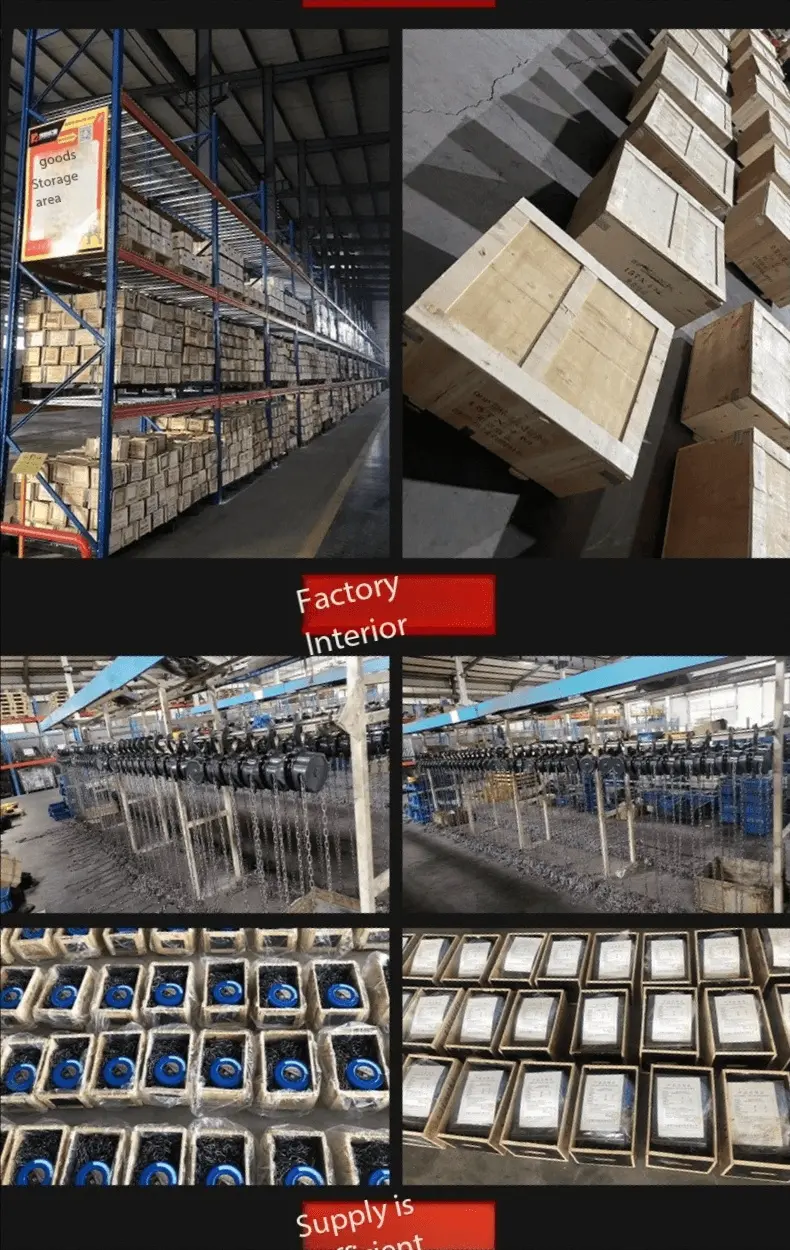

Product packaging: Wooden packaging

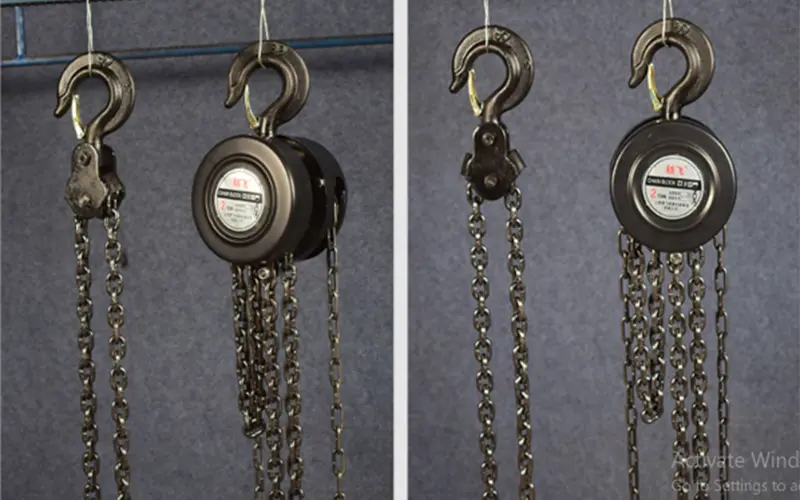

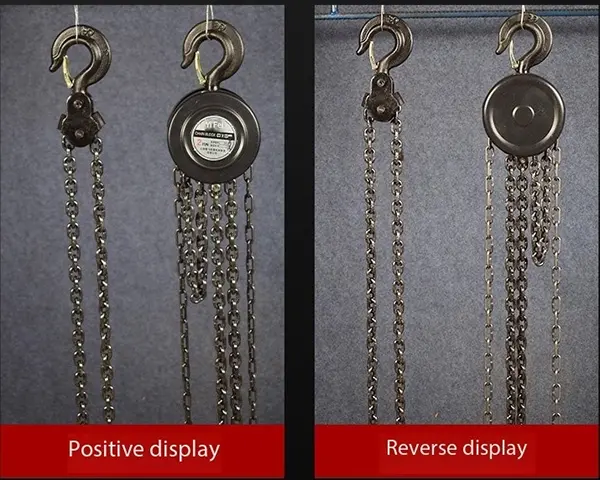

Product back and back display

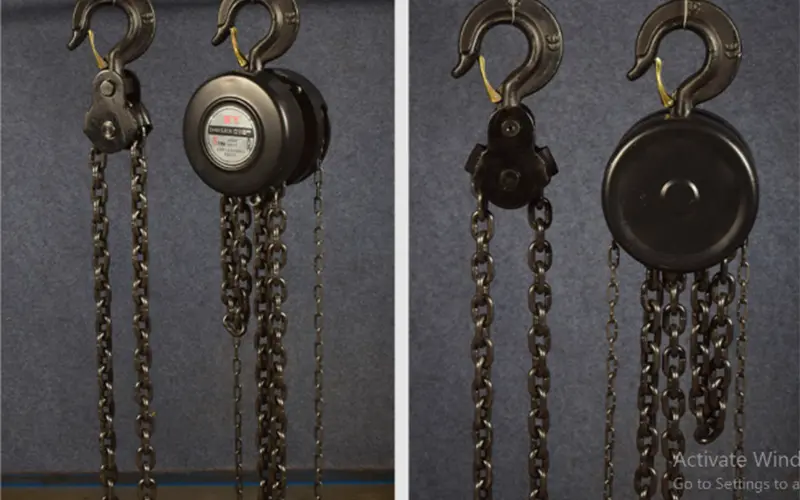

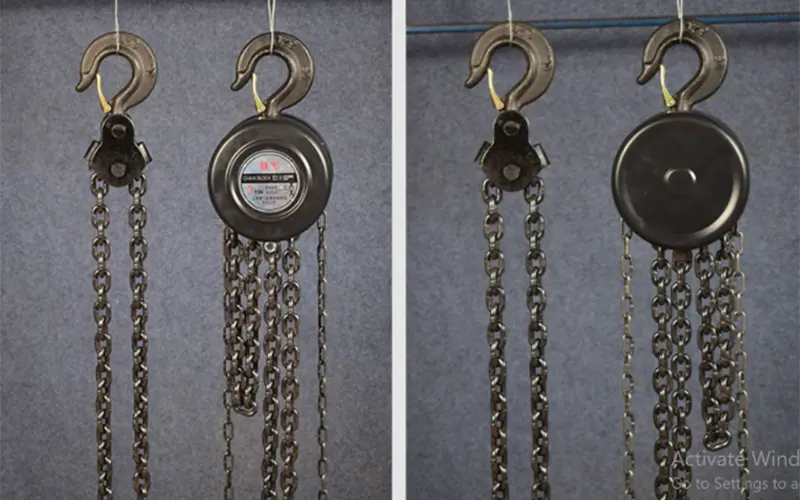

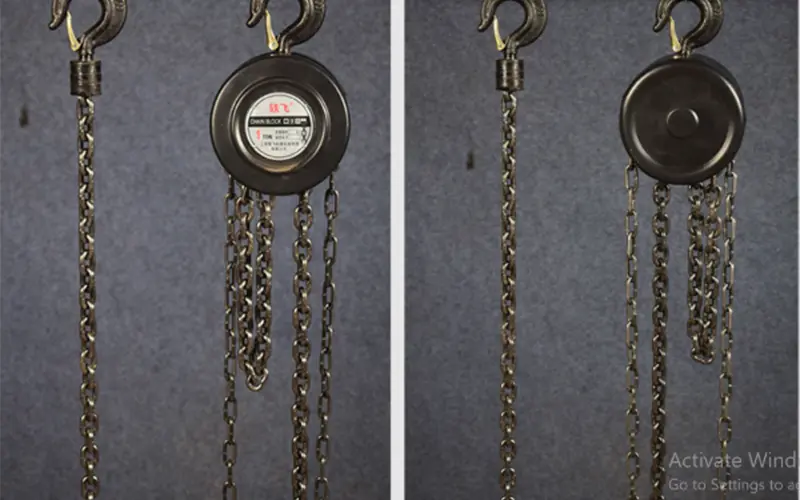

Front/Back

Multiple options and different options are available according to customer needs.
